Overview

Access the Devio SCX Web Interface

An embedded Web Interface offers management of the parameters and settings of the Devio SCX via most web browsers (Chrome, Safari, Firefox, etc.).

Connect by entering the device's IP address in your browser, then enter the User Name and Password. The Devio SCX  uses the following default username and password:

Username: admin

Password: Devio SCX device serial number

The default username and password can be modified on the Settings page. When modifying the the password, it must have a minimum of 8 characters and a maximum of 30 characters.

The username and password will reset to the default values following a factory reset. Firmware updates will not effect the Sign In credentials.

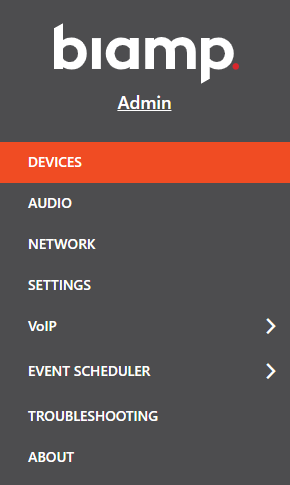

Side Menu

The Side Menu lists each page accessible from the main page with a brief description of the contents of each page. See detailed information on the functions by clicking the links below:

Devices

The Devices page provides a list of discovered hardware devices and device information:

• Configuration State

• Fault Information

• Serial Numbers

• Firmware Version

• Hardware Locate Functions (Visual or Audible)

Audio

The Audio page shows connected device and allows making adjustments to audio settings. Biamp Launch is also initiated from the Audio page. Upon successful launch a high level Report Card or more detailed Advanced Report Card are available to provide room acoustics and adjustments made during Launch.

Network

The Network page allows the following to be configured:

• Hostname

• IP Configuration

• DNS Configuration

• Services

Settings

The Settings Page allows authorized users to adjust the Device settings for the Devio SCX:

• Remote reboot

• Set clock

• Update firmware

• Update password

VoIP

View VoIP Devio SCX settings including current operating state, VoIP Access Logs and edit the VoIP endpoint configuration:

• System

• Line Setup (Standard)

• Line Setup (Advanced)

Event Scheduler

The Event Scheduler allows a user to schedule tasks to occur automatically. These may be set as one-time events, on a daily, weekly or monthly basis as desired, depending on the event.

• Events

• Logs

Troubleshooting

The Troubleshooting page provides system status and event logs that can assist user in identifying issues in the system.
