The Devio SCX will discover attached devices, configure itself accordingly and supports the following device types:
TCM-1, TCM-1A, TCM-1EX
TCM-X, TCM-XA, TCM-XEX
TTM-X, TTM-XEX
EX-UBT, EX-USB
AMP-450P, AMP-450BP
HD-1

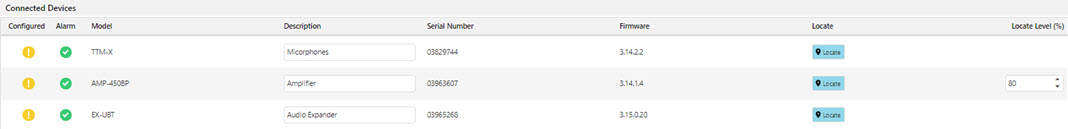

The Device List allows the user to view the Devio SCX and other connected devices. When using the Devio SCX for the first time, or after a Reset, the user must perform a Launch to configure the devices. After Launch, devices will be configured automatically when they are powered up:
Devices that have been properly configured via Biamp Launch will be indicated by a green checkbox; devices that have not been configured will be indicated by a yellow exclamation mark.
Devices that are operating properly with no alarms will be indicated by a green checkbox in the Alarm column. An exclamation mark indicates an issue (fault) in the system. See Troubleshooting for a list of faults in a system.
Indicates the model type of the connected device. This is editable by the user.
The Device Description allows each device to be given a descriptive name:
Gives the serial number of each connected device:
The firmware column lists the firmware version currently on each device:
The Locate feature finds a specific device and can be turned on or off for a device by clicking the
icon in the Device List table. When the device is located all of its LED indicators will flash green. When locating a speaker the user will hear an audible locate message.
The Located Level allows the user to adjust the level of the locate audible device:
